Unit 1: Creating a Master Data Type¶
Step 1: Creating a Station Master Data Type¶
In the left navigation bar of the Data Catalog, click Object Type.
Click New Object Type > New Master Data Object Type.
On the New Object Type page, enter or select the following information:
- Type ID: enter
site
- Description: enter
mock site for tutorial
- Attributes:
- Click Add Attribute
- Name: enter
siteId
- Type: select
string
- Indexed?: tick
True
- Required?: tick
True
- Primary Key Definition: select
siteId
- Name: enter
- Click Add Attribute
- Type ID: enter
Click OK to create the station master data type.

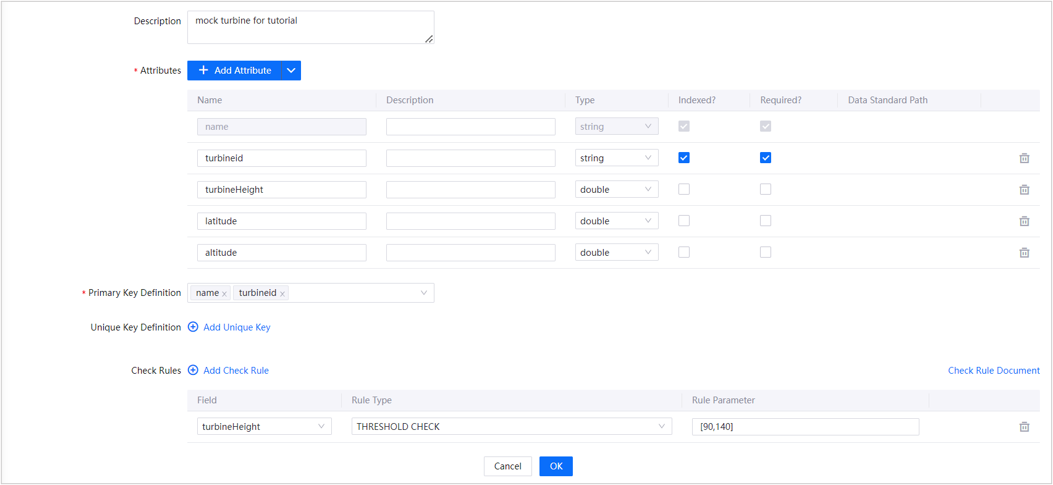

Step 2: Creating a Wind Turbine Master Data Type¶
- In the left navigation bar of the Data Catalog, click Object Type.
- Click New Object Type> New Master Data Object Type.
- On the New Object Type page, enter or select the following information:
- Type ID: enter
EAM_Turbine
- Description: enter
mock turbine for tutorial
- Attribute Definition:
- Click Add Attribute to add multiple attributes in sequence according to the following table:
- Type ID: enter
Name | Type | Indexed | Required |
---|---|---|---|
turbineid | string | true | true |
turbineHeight | double | Optional | Optional |
latitude | double | Optional | Optional |
altitude | double | Optional | Optional |
Primary Key Definition: select
name
,turbineid
Check Rules:
- Click Add Check Rule, then enter or select the following information:
- Field: select
turbineHeight
- Rule Type: select
THRESHOLD CHECK
- Rule Parameter: enter
[90,140]
- Field: select
- Click Add Check Rule, then enter or select the following information:
- Click OK to create the wind turbine master data type.

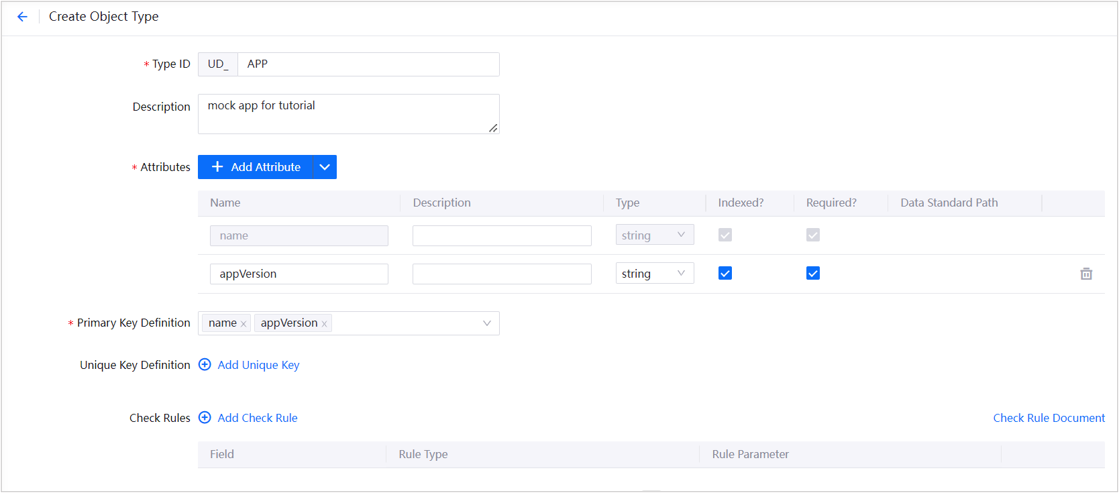

Step 3: Creating a Wind Turbine Monitoring Application Type¶
In the left navigation bar of the Data Catalog, click Object Type.
Click New Object Type> New Master Data Object Type.
On the New Object Type page, enter or select the following information:
- Type ID: enter
APP
- Description: enter
mock app for tutorial
- Attribute Definition:
- Click Add Attribute
- Name: enter
appVersion
- Type: select
string
- Indexable: tick
True
- Required: tick
True
- Primary Key Definition: select
name
,appVersion
- Name: enter
- Click Add Attribute
- Type ID: enter
Click OK to submit and complete creation of the wind turbine monitoring application type.

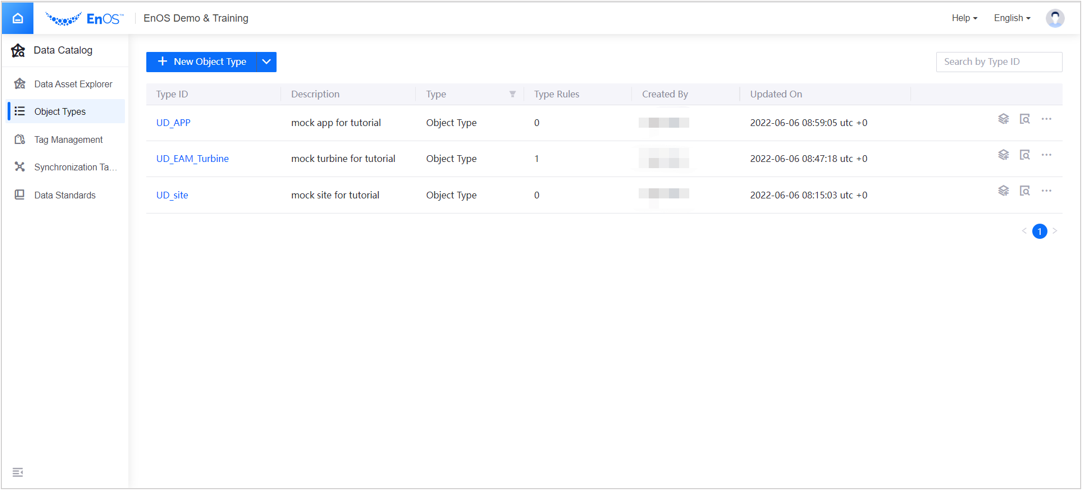

After the master data type is created, in the type list on the Object Type function homepage, click View at the end of a specific object type row to view and edit its basic information.
