Quick Start: Connecting a Smart Device to EnOS Cloud¶

This section helps you quickly learn how to connect a direct-connecting device to EnOS Cloud, how to send device telemetry, and how to check the device communication status from EnOS Management Console.

About the Scenario¶

For information about the connection scenario of this task, see “Scenario 1.1” in Device Registration Methods.

About This Task¶

Let us take the household PV inverter connection as an example. The inverter device triple is burned into the inverter during manufacturing. After you power on and connect the inverter to the network, the inverter is connected to the Device Connectivity & Management based on the device triple authentication. The overall connection scenario is shown below.

../_images/device_connection_task_description.png

The procedure has the following steps:

Create a device model for the inverter.
Create a product for the inverter.
Register the inverter.
Configure the storage policy for the measurement point data.
Use EnOS SDK to simulate the inverter to send data.
Check the device communication status.
View the device data.
Use the online debugging tool to set the measurement point value

Step 1: Create a Device Model¶

This step assumes that there is no existing device model that can be reused. Create a new model named Inverter_Demo with the features defined as per the below.

Feature Type	Name	Identifier	Data Type	Value
Attribute	Inverter type	invType	enum	{0:Central,1:String}
Attribute	Component capacity	capacity	float	kWp
Measurement Point	Active power	INV.GenActivePW	double	kW
Service	Control	INV.Control		Invoke Method: Asynchronous
Event	Error information	Error		Event Type: Error

The steps to create this model are as follows.

In EnOS Management Console, click Models from the left navigation menu.

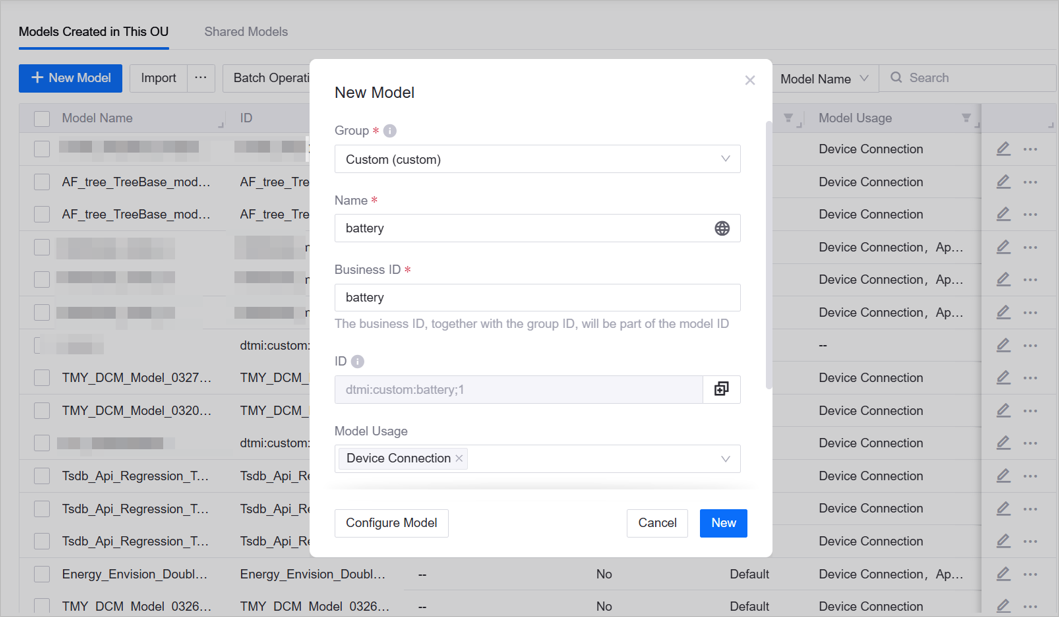

Click New Model, and provide the following settings in the New Model window:
- Identifier: Inverter_Demo
- Model Name: Inverter_Demo
- Model Name (en_US): Inverter_Demo
- Category: NA
- Create From: No
- Source Model: No
- Description: Inverter model for demo project
Click OK to complete the operation.
Click Edit, and click the Feature Definition tab in the Model Details screen.

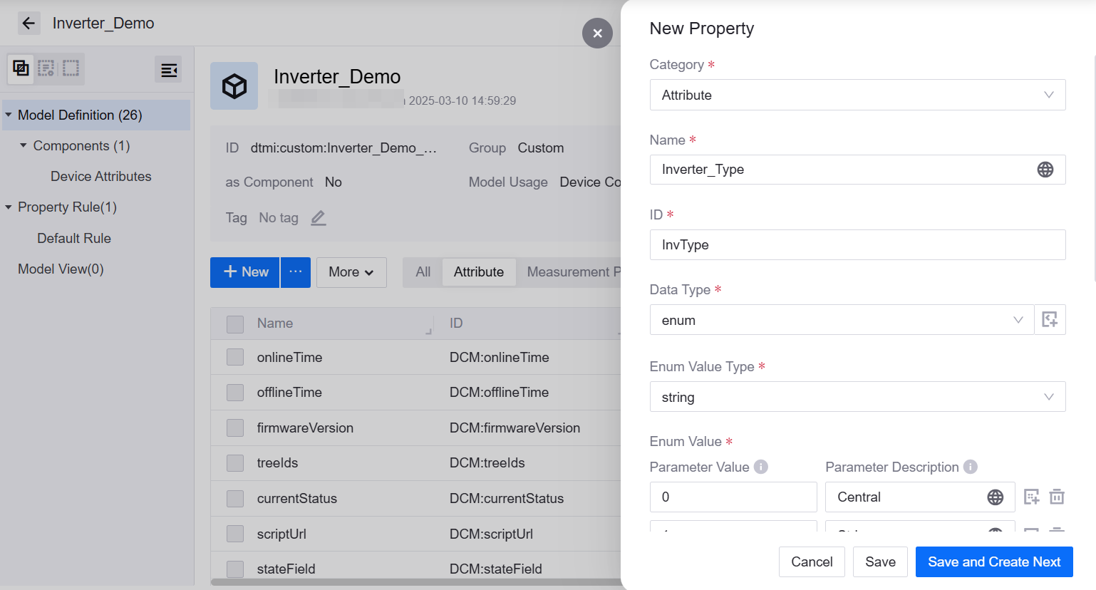

Click Edit > Add > Create Custom Feature, and provide the following settings in the Add Feature pop-up window:
- Attribute 1
  - Name: Inverter_Type
  - Identifier: invType
  - Data Type: enum
  - Enum Items:
    - Value = 0; Description = Central
    - Value = 1; Description = String
  - Required: Yes
- Attribute 2
  - Name: Inverter_Capacity
  - Identifier: capacity
  - Data Type: float
  - Unit: kWp
  - Required: Yes
- Measurement Point
  - Name: Active_Power
  - Identifier: INV.GenActivePW
  - Point Type: AI
  - Data Type: double
  - Unit: kW
- Service
  - Name: Control
  - Identifier: INV.Control
  - Input Parameters:
    - Parameter Name: control
    - Identifier: control
    - Data Type: enum
    - Enum Items:
      - Value = 0; Description = Stop
      - Value = 1; Description = Start
  - Output Parameters:
    - Parameter Name: execResult
    - Identifier: execResult
    - Data Type: enum
    - Enum Items:
      - Value = 0; Description = Failure
      - Value = 1; Description = Success
- Event
  - Name: Error
  - Identifier: Error
  - Severity: Error
Click Publish to complete the operation.

For more information about models, see Creating a Model.

Step 2: Create a Product¶

Create a product called Inverter_Product. It is assumed that a device of this product model sends data in JSON format and the data transmission is not encrypted using the CA certificate.

In EnOS Management Console, select Device Management > Products.
Click New Product, and provide the following settings in the New Product window:
- Product Name: Inverter_Product
- Asset Type: Device
- Device Model: Inverter_Demo
- Data Format: Only EnOS IoT
- Certificate-based Two-way Authentication: Disabled
- Product Description: Inverter product for demo
Click OK to complete the operation.

For more information about products, see Creating Products.

Step 3: Register the Device¶

Create a device named INV001, which belongs to the Inverter_Product product model created in the previous step.

In EnOS Management Console, select Device Management > Device Assets.
Click New Device, and provide the following settings in the New Device window:
- Product: Inverter_Product
- Device Name: INV001
- Device Key: Optional, generated automatically by the system
- timezone: UTC+14:00
- Use DST: Unchecked
- Inverter Capacity: 5.0
- Inverter Type: 0: Central (indicates a centralized inverter)
Click OK to complete the operation.

For more information about devices, see Creating a Device.

After you complete the device registration, obtain the device triple: ProductKey,DeviceKey,and DeviceSecret, which will be used in the following step.

Step 4: Configure the Storage Policy for the Measurement Point Data¶

After registering the device and before connecting the device to EnOS Cloud, you need to configure the storage policy for the data of the measurement point INV.GenActivePW. The detailed steps are as follows.

If the Time Series Database resource has not been requested yet for the organization, log in to EnOS Management Console, select Resource Management > Resource List, and request for the Time Series Database resource under the Data Management tab. For more information about requesting resources, see Resource Management on EnOS.
In EnOS Management Console, select Time Series Data Management > Storage Policies and configure the storage policy (with the appropriate storage type and storage time) for the measurement point data. For more information about configuring the storage policy, see Configuring TSDB Storage.

Step 5: Use Java SDK to Simulate the Device to Send Telemetry¶

Use the Java SDK sample code to simulate the sending of the inverter active power to the cloud as per the below.

Obtain the Device SDK. For information about how to set up the development environment, see the GitHub readme file.
Configure EnOS Cloud connection as instructed in the readme file.
Configure the address of EnOS cloud (environment_address) and the device triple (ProductKey, DeviceKey, and DeviceSecret) into the sample connection program. The device triple is obtained when you register the device.
Modify the initWithCallback method to establish connection between the device and the cloud.

Modify the postMeasurepoint method to configure the name of the measurement point that sends telemetry to the cloud. In this example, we will set the active power point of the inverter, the point name INV.GenActivePW, and the corresponding point value.

The following sample code is for connecting the device to EnOS and simulating the posting of data to the cloud:

import com.envisioniot.enos.iot_mqtt_sdk.core.ConnCallback;
import com.envisioniot.enos.iot_mqtt_sdk.core.MqttClient;
import com.envisioniot.enos.iot_mqtt_sdk.core.exception.EnvisionException;
import com.envisioniot.enos.iot_mqtt_sdk.message.upstream.tsl.MeasurepointPostRequest;
import com.envisioniot.enos.iot_mqtt_sdk.sample.SimpleSendReceive;

import java.util.Random;

public class demo1 {
    public static final String url = "tcp://{environment_address}";
    public static final String productKey = "ProductKey";
    public static final String deviceKey = "{DeviceKey}";
    public static final String deviceSecret = "{DeviceSecret}";
    private static MqttClient client;
    private static volatile boolean subDeviceLogined = false;
    private static Random random = new Random();
    private static int idInc = 20;
    private static final char[] HEX_CHAR = new char[]{'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'a', 'b', 'c', 'd', 'e', 'f'};

    public demo() {
    }

    public static void main(String[] args) throws Exception {
        initWithCallback();
        postMeasurepoint();
    }

    public static void initWithCallback() {
        System.out.println("start connect with callback ... ");

        try {
            client = new MqttClient(url, productKey, deviceKey, deviceSecret);
            client.getProfile().setConnectionTimeout(60).setAutoReconnect(false);
            client.connect(new ConnCallback() {
                public void connectComplete(boolean reconnect) {
                    SimpleSendReceive.subDeviceLogin();
                    System.out.println("connect success");
                }

                public void connectLost(Throwable cause) {
                    System.out.println("onConnectLost");
                }

                public void connectFailed(Throwable cause) {
                    System.out.println("onConnectFailed : " + cause);
                }
            });
        } catch (Throwable var1)  {
        }

        System.out.println("connect result :" + client.isConnected());
    }

    public static void postMeasurepoint() {
        Random random = new Random();
        System.out.println("start post measurepoint ...");
        MeasurepointPostRequest request = (MeasurepointPostRequest)MeasurepointPostRequest.builder().addMeasurePoint("INV.GenActivePW", random.nextDouble()).build();

        try {
            client.fastPublish(request);
            System.out.println(" post measurepoint success...");
        } catch (Exception var3) {
            var3.printStackTrace();
        }
    }

}

Use the handleServiceInvocation() method to handle the service invocation request from the cloud.

public static void handleServiceInvocation() {
     IMessageHandler<ServiceInvocationCommand, ServiceInvocationReply> handler = new IMessageHandler<ServiceInvocationCommand, ServiceInvocationReply>() {
         public ServiceInvocationReply onMessage(ServiceInvocationCommand request, List<String> argList) throws Exception {
             System.out.println("rcvn async serevice invocation command" + request + " topic " + argList);
             return (ServiceInvocationReply)ServiceInvocationReply.builder().addOutputData("execResult", 0).build();
         }
     };
     client.setArrivedMsgHandler(ServiceInvocationCommand.class, handler);
 }

For more information, see Using EnOS Device SDK.

Step 6: Check the Device Connection Status¶

In EnOS Management Console, click Device Management > Device Assets, locate the device, and check the status of the INV001 device and confirm that the device is Online.

Step 7: View the Device Data¶

From the device list, locate the device and click the View icon to show the Device Details page.
Click the Measurment Points tab, find the INV.GenActivePW measurment point, and click the View Data icon to open the Data Insights page.
View the latest data of the measurement point on the Data Insights page. If the TSDB storage policy has been configured for the measurment point, you can also view the historic data of the measurment point in a chart or table. For more information about data insights, see Generating Time Series Data Chart.
